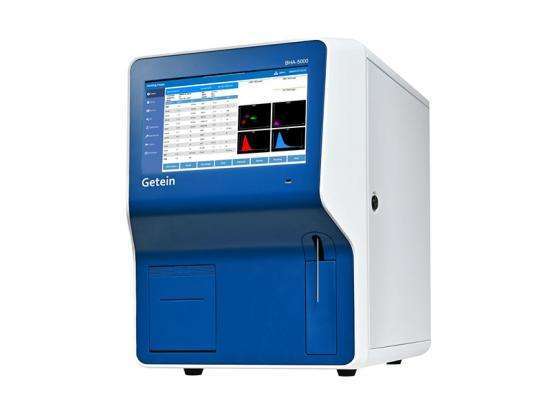

BHA-5000 Automatic Hematology Analyzer


BHA-5000 Automatic Hematology Analyzer is employed to count red blood cells, white blood cells, and platelets in blood samples. The results can be used to measure the hemoglobin and calculate relevant parameters of blood cells. It is applicable in hospitals, clinics, and laboratories.

  • Sample Type: Whole Blood (Venous/Capillary), Pre-dilution
  • Methodology: Electrical impedance method and colorimetry
  • Dimensions: 328 mm x 471 mm x 446 mm (L x W x H)
  • Weight: 21 kg
SKU: GP8001A Categories: , Tags: , ,

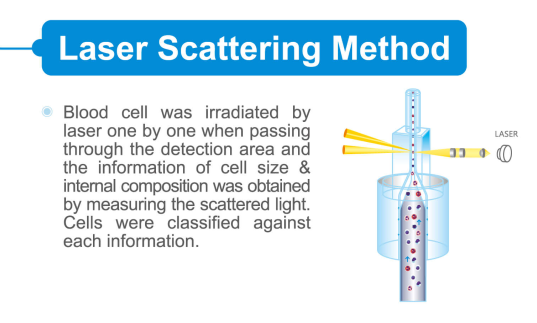

BHA-5000 Automatic Hematology Analyzer uses laser based flow cytometry to count white blood cells in blood sample, uses electrical impedance to count red blood cells and platelets, and colorimetry to measure the hemoglobin, and relevant parameters will be enumerated.


50 µm Hole: Accurate test of blood cells with 50 µm gem holes

Digital Filtering: Effectively remove interference

Coincidence Calibration: Enhance analytical capabilities

Double Channels: WBC double channels 2D classification, faster and more accurate

Technical Specifications

Parameters5-part WBC Differential
25 Reportable Parameters
2 Histograms
2 Scatter Grams
Abnormal Sample Alarm
Sample ModeWhole Blood (Venous/Capillary), Pre-dilution
QC MethodsL-J QC, X-B QC
Power Supply100-240 V~50/60 HZ
Weight21 kg
Dimension328 mm x 471 mm x 446 mm (L x W x H)
Data Storage100,000
Screen Type10.4 inch Resistive Screen
Operating Conditions18~30°C,≤80% Relative Humidity, 75 kPa~106 k Pa

Test Items

White Blood Cell WBCMean Corpuscular Hemoglobin Concentration MCHC
Neutrophil# NEU#Mean Corpuscular Hemoglobin MCH
Lymphocyte# LYM#Red Cell Volume Distribution Width-Standard Deviation RDW-SD
Monocyte# MON#Red Blood Cell Specific Volume HCT
Eosinophil# EOS#Platelet PLT
Basophil# BAS#Mean Platelet Volume MPV
Neutrophil% NEU%Platelet Distribution Width PDW
Lymphocyte% LYM%Plateletcrit PCT
Monocyte% MON%Platelet-Large Cell Ratio P-LCR
Eosinophil% EOS%Platelet-Large Cell Count P-LCC
Basophil% BAS%    Red Cell Volume Distribution Width-Coefficient of Variation RDW-CV
Red Blood Cell RBCMean Cell Volume MCV
Hemoglobin (Concentration) HGB
